Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Minimum Output Dew Point (in C) | -60 C, -40 C, -80 C |
| Maximum Pressure (in bar) | 7 Bar, 10 Bar, 8 Bar |
| Dryer Horse Power (HP) | 5 HP |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Operating Principle:-

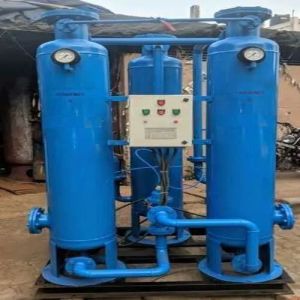

In Heatless Dryers, two vessels filled with desiccant is provided which cycle automatically, producing dry air continuously. In these units, wet air enters the bottom of one Vessel and passes upwards through the desiccant bed where the moisture is adsorbed. The clean dry air comes out from the top. A small portion of dry air is passed downwards through the desiccant bed in the second vessel which is under re-generation. The moisture-laden purge air is then vented out to the atmosphere.The purge loss is around 7.5% of the total air flow. At the preset interval, the vessel changeover automatically, and the Dry air is available continuously without any surges.
Easy Operation:
This is simplest type of air dryer with Activated Alumina / Molecular Sieves drying agent. This is virtually maintenance free, fully automatic, and requires no attention for year. Heatless type dryers do not require any heating re-generation and therefore are very simple in design and maintenance free.
Advantages:
- Due to its inherent simple design, investment in this type of dryer is the cheapest and the payback on this investment is very quick
- Low-Temperature operation reduces corrosion in tower and desiccant lasts longer
- Power requirement is 60 watt only for Solenoids Valves Operation
